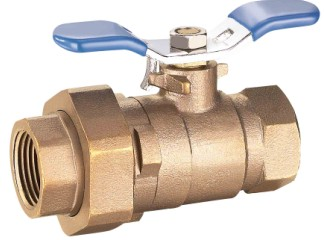

XD-LF1104 Bronze Casting Full Port Ball Valve With Union Ends

XD-LF1104 Bronze Casting Full Port Ball Valve With Union Ends Featured Image
  • XD-LF1104 Bronze Casting Full Port Ball Valve With Union Ends

Short Description:

► Size: 1/2”, 3/4”, 1”, 11/4”, 11/2”, 2”
• Two-Piece Body,Full Port.Bronze Trim,Single Union Ends,Blowout-Proof Stem;
• 600 PSI/41.4 Bar Non-Shock Cold Working Pressure;
• 150 PSI/10.3 Bar Saturated Steam;
• Threads Standard:IS0 228.


Product Detail

Product Tags


Service
• Air or non-toxic, non-flammable gas;
• City gas supplied by public utilities;
• Gasoline;
• Liquified petroleum gas, 250 PSI max.

Specification

PART SPECIFICATION
Body Bronze Alloy C84400
Ball Bronze or Brass
Stem Bronze ASTM B 371 Alloy C69400 or ASTM B 99 Alloy C65100
Handle Zinc Plated Steel Clear Chromate Plastisol Coated
Handle Nut Zinc Plated Steel
Packing PTFE
Threaded Pack Gland Brass ASTM B 16 Alloy C36000
Thrust Washer Reinforced TFE
Tail Piece ASTM B 124 Alloy C37700
Union Nut ASTM B 124 Alloy C37700
Body End ASTM B 124 Alloy C37700
