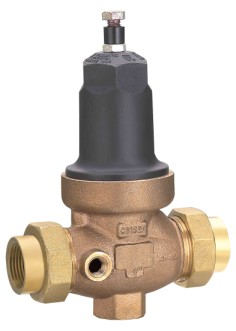

XD-LF1302EX PRV Special Bronze Water Pressure Reducing Valve With Drain.

XD-LF1302EX PRV Special Bronze Water Pressure Reducing Valve With Drain. Featured Image
  • XD-LF1302EX PRV Special Bronze Water Pressure Reducing Valve With Drain.

Short Description:

► Size:1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″
• Maximum working water pressure 400PSI;
• Maximum working water temperature 180°F;
• Reduces pressure range:15 to 150 PSI;
• Factory set at 50 PSI, adjustable from 25-75 PSI;
• Threaded connections (FNPT) ANSI B1.20.1;
• Copper connections (FC) ANSI B16.22;
• CPVC tailpiece: Max.hot water temp. 180°F @ 100PSI;
Cold water rated temp. 73.4°F @ 400PSI.


Product Detail

Product Tags


► Materials:
• Bronze housing;
• Corrosion resistant thermoplastic bell housing;
• Machined rod brass clean-out plug;
• Stainless steel seat and strainer;
• Buna-N seat washer and O ring;
• Brass cartridge;
• Nylon reinforced neoprene diaphragm;

Specification

No. Part Material
1 Regulating Screw 35# Steel
2 Bush Polyformaldehyde (Black)
3 Screw Nut 35# Steel
4 Nut Cap Reinforced Nylon
5 Top Cover ST-13 Iron
6 Spring 65 Mn
7 Screw Ⅱ Stainless Steel
8 Sheeting ST-13 Iron
9 Check Washer Ⅰ Stainless Steel
10 O Ring Ⅰ NBR
11 O Ring Ⅲ NBR
12 Leather Packing Rubber
13 Strainer Stainless Steel
14 Washer H62
15 Spacer Ⅱ Stainless Steel
16 Tie Rod HPb59-1
17 O Ring Ⅱ NBR
18 Control Agent Polyformaldehyde (White)
19 Cap HPb59-1
20 Jam Rubber
21 Check Washer Ⅱ Polyformaldehyde (White)
22 Screw Ⅰ Stainless Steel
23 Spacer Ⅰ Stainless Steel
24 Body Bronze C89833
25 Leather Spaser Rubber
26 Union Nut Bronze C89833
27 Union Tube Bronze C89833
