► Materials
Main Valve Body Cast Bronze ASTM B 584
Ball Brass ASTM B 16, Chromed Plated
Seat&Packing Teflon
Flare Fitting Brass ASTM B 16
► XD-LF1201
► Standardly furnished with NPT body connections.
Series furnished with quarter turn, full port, resilient seated, bronze ball valve shutoffs.
Features
• Bronze body construction for durability;
• Large body passages provides low pressure drop;
• Ball valve test cocks — screwdriver slotted;
• Internal relief valve for reduced installation clearances;
• Single access cover and modular check construction for ease of maintenance;
• Captured springs for safe maintenance;
• Replaceable seats for economical repair;
• Top entry — all internals immediately accessible;
• Compact, space saving design;
• No special tools required for servicing;
• 1/2" – 1" (15 – 25mm) have tee handles.
| Part | Material |
| Body | Cast Bronze, ASTM B 584 (3/4-1") |
| Housing | Reinforced Nylon |
| Fasteners | Stainless Steel, 300 Series |
| Elastomers | Silicone (FDA Approved) Buna Nitrile (FDA Approved) |
| Internals | Delrin, NSF Listed |
| Springs | Stainless steel, 300 series |
| Ball Valves | Cast Bronze, ASTM B 584 |
| Struts | Forged Brass ASTM B 124 |

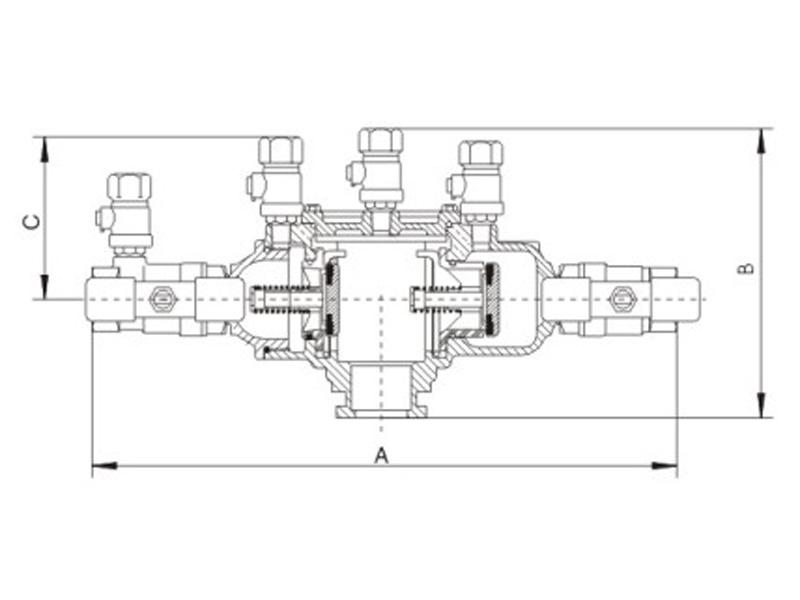

Specification
| MODEL | SIZE (DN) | DIMENSIONS | WEIGHT | ||||||
| No. | A | B | C | ||||||
| in. | mm | in. | mm | in. | mm | in. | mm | g | |
| XD-LF1201 | 1/2“‘ | 15 | 161/2 | 419 | 4 3/4" | 121 | 3 1/2 | 89 | 3200 |
| 3/4" | 20 | 133/4 | 349 | 5 | 127 | 3 3/4 | 95 | 3780 | |
| 1" | 25 | 173/8 | 441 | 5 1/2" | 140 | 3 1/8 | 79 | 4000 | |
| 1 1/4" | 32 | 241/2 | 622 | 7 3/4" | 197 | 4 | 100 | 5800 | |
| 1 1/2" | 40 | 251/2 | 648 | 7 3/4" | 197 | 4 1/4 | 108 | 12600 | |
| 2" | 50 | 273/8 | 695 | 7 3/4" | 197 | 4 1/4 | 108 | 13600 | |
