► XD-LF1202
► Standardly furnished with NPT body connections.
Series furnished with quarter turn, full port, resilient seated, bronze ball valve shutoffs.

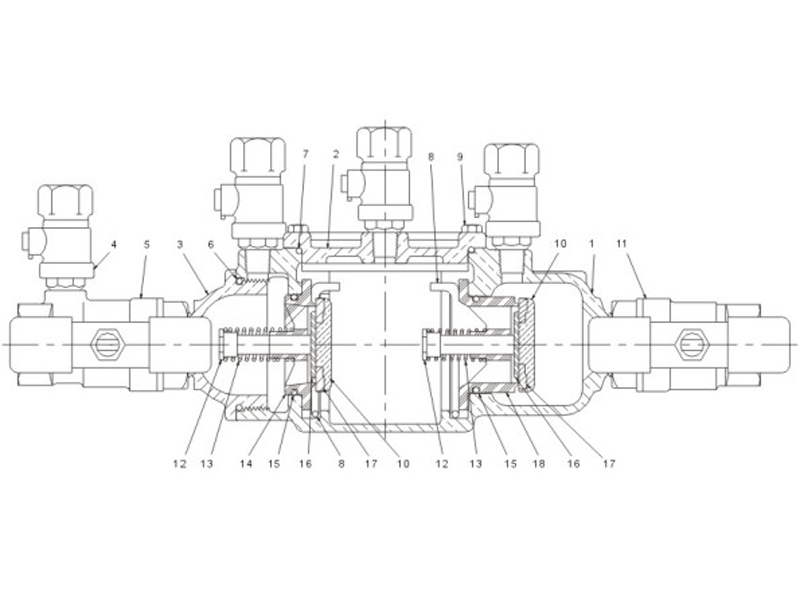

Specification
| No. | Part | Material |
| 1 | Body | Bronze C89833 |
| 2 | Housing | Bronze C89833 |
| 3 | Fasteners | Bronze C89833 |
| 4 | Mini Ball Vlave | Bronze C89833 |
| 5 | Ball Valve With Drain | Bronze C89833 |
| 6 | O Ring | Rubber ¢54×2.5 |
| 7 | O Ring | Rubber ¢73×2.5 |
| 8 | Snapspring | Stainless steel |
| 9 | Screw | Stainless steel |
| 10 | Cap | Bronze C90500 |
| 11 | Ball Vlave | Bronze C89833 |
| 12 | Drag Link | Bronze C90500 |
| 13 | Spring | Stainless steel |
| 14 | Short Check Valve | Reinforce ABC Nylon |
| 15 | O Ring | Rubber ¢40×2.6 |
| 16 | Washer | Stainless steel |
| 17 | Packing Seal | Rubber ¢35×¢16×4.2 |
| 18 | Long Check Valve | Reinforce ABC Nylon |
Features
Bronze body construction for durability
Large body passages provides low pressure drop
Internal relief valve for reduced installation clearances
Replaceable seats for economical repair
Ball valve test cocks — screwdriver slotted
Top entry — all internals immediately accessible
Captured springs for safe maintenance
Compact, space saving design
1/2" – 1" (15 – 25mm) have tee handles
