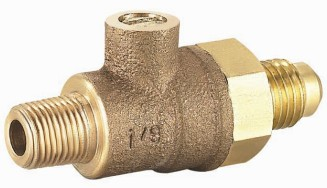

XD-LF1109 Bronze Casting Backflow Preventer Test Cock Shut-off Valve

XD-LF1109 Bronze Casting Backflow Preventer Test Cock Shut-off Valve Featured Image
  • XD-LF1109 Bronze Casting Backflow Preventer Test Cock Shut-off Valve

Short Description:

► Size:1/8″M x 45°SAE

• Full port ball valve design;
• Screwdriver slot operation;


Product Detail

Product Tags


► Features
Maximum Pressure 300PSI WOG
Maximum Temoerature 180°F
End Connection Threaded ANSI B1.20.1
Flare Connection (860FT) 45° Flare SAE

► Materials
Main Valve Body Cast Bronze ASTM B 584
Ball Brass ASTM B 16,Chromed Plated
Seat&Packing Teflon
Flare Fitting Brass ASTM B 16

Specification

No. DN Dimensions(Approximate)
A B C
Size In mm In mm In mm
XD-LF1108 1/4"Mx F 1 5/8 41 3/4 19 3/8 10
XD-LF1109 1/8"Mx 45°SAE 2 51 3/4 19 3/8 10

For use with backflow preventers, isolation valves for gauges, and isolation valves for small equipment lines.
