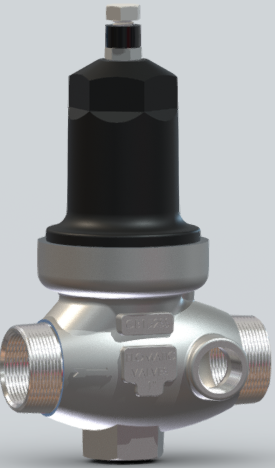

XD-SS1304 Special Stainless Steel #304 Water Pressure Reducing Valve

Short Description:

►Size:1″F x 1-1/4″M
• Maximum working water pressure 400PSI;
• Maximum working water temperature 180°F (80°C);
• Factory set at 50 PSI.

Send email to us

Product Detail

Product Tags

Reduces rapid pump cycling and maintains a pre-set operating pressure for pump systems. NPT threaded 1" female I.D. and 1¼" male O.D. on inlet and outlet connections. Features a flow efficient globe style all stainless steel body & composite bell housing, Nylon reinforced Buna-N diaphragm.

Specification

No.	Part	Material
1	Regulating Screw	35# Steel
2	Bush	Polyformaldehyde (Black)
3	Screw Nut	35# Steel
4	Nut Cap	Reinforced Nylon
5	Top Cover	ST-13 Iron
6	Spring	65 Mn
7	Screw Ⅱ	Stainless Steel
8	Sheeting	ST-13 Iron
9	Check Washer Ⅰ	Stainless Steel
10	O Ring Ⅰ	NBR
11	O Ring Ⅲ	NBR
12	Leather Packing	Rubber
13	Strainer	Stainless Steel
14	Washer	H62
15	Spacer Ⅱ	Stainless Steel
16	Tie Rod	HPb59-1
17	O Ring Ⅱ	NBR
18	Control Agent	Polyformaldehyde (White)
19	Cap	HPb59-1
20	Jam	Rubber
21	Check Washer Ⅱ	Polyformaldehyde (White)
22	Screw Ⅰ	Stainless Steel
23	Spacer Ⅰ	Stainless Steel
24	Body	Bronze C89833
25	Leather Spaser	Rubber
26	Union Nut	Bronze C89833
27	Union Tube	Bronze C89833
